M1212FA-2/P00K
Cordsets
- Form：M12 Pre-assembled Connector
- Type：Female, Angled
- Coding：A-Code
- Pins：12pin
- Length：2M
- Cable：PVC, Unshielded
- Technical Features
- Dimensions
- Connections
- Additional Features
| Rated Current | 1.5A |
| Voltage | 30V |
| Wire color | 1=BN 2=BU 3=WH 4=GN 5=PK 6=YE 7=BK 8=GY 9=RD 10=VT 11=GY/PK 12=RD/BU |
| Wire gauge | 12×0.25 (12×24AWG) PVC, black |
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | Plastic, PA, black |
| Material of grip body | Plastic, TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
Unit: mm

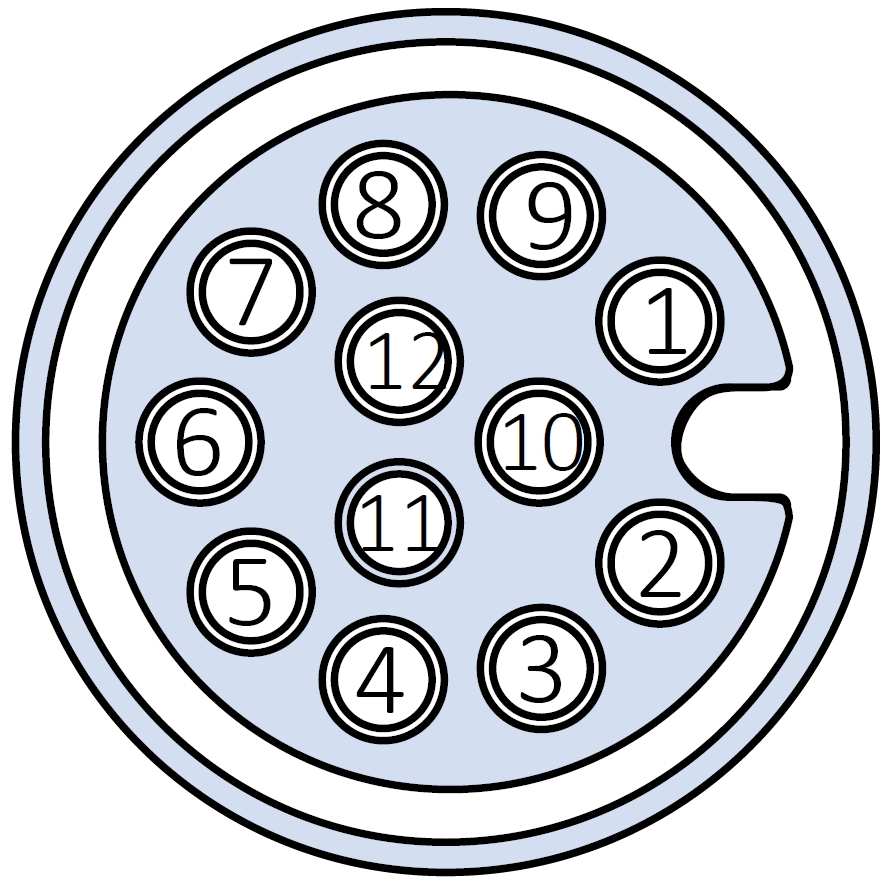

Pin Assignment
Wire Color
1=BN
2=BU
3=WH
4=GN
5=PK
6=YE
7=BK
8=GY
9=RD
10=VT
11=GY/PK
12=RD/BU
5=PK
6=YE
7=BK
8=GY
9=RD
10=VT
11=GY/PK
12=RD/BU
