请注意，本PDF文档中所示数据均生成自在线目录，仅供参考。想获取具体详尽的产品规格参数请联系我们的销售人员！
M1204F-2/P00K
Cordsets
- Form：M12 Pre-assembled Connector
- Type：Female, Straight
- Coding：A-Code
- Pins：4pin
- Length：2M
- Cable：PVC, Unshielded
- Technical Features
- Dimensions
- Connections
- Additional Features
| Rated Current | 4A |
| Voltage | 250V |
| Wire color | 1=BN 2=WH 3=BU 4=BK |
| Wire gauge | 4×0.34 (4×22AWG) PVC, black |
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | Plastic, PA, black |
| Material of grip body | Plastic, TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

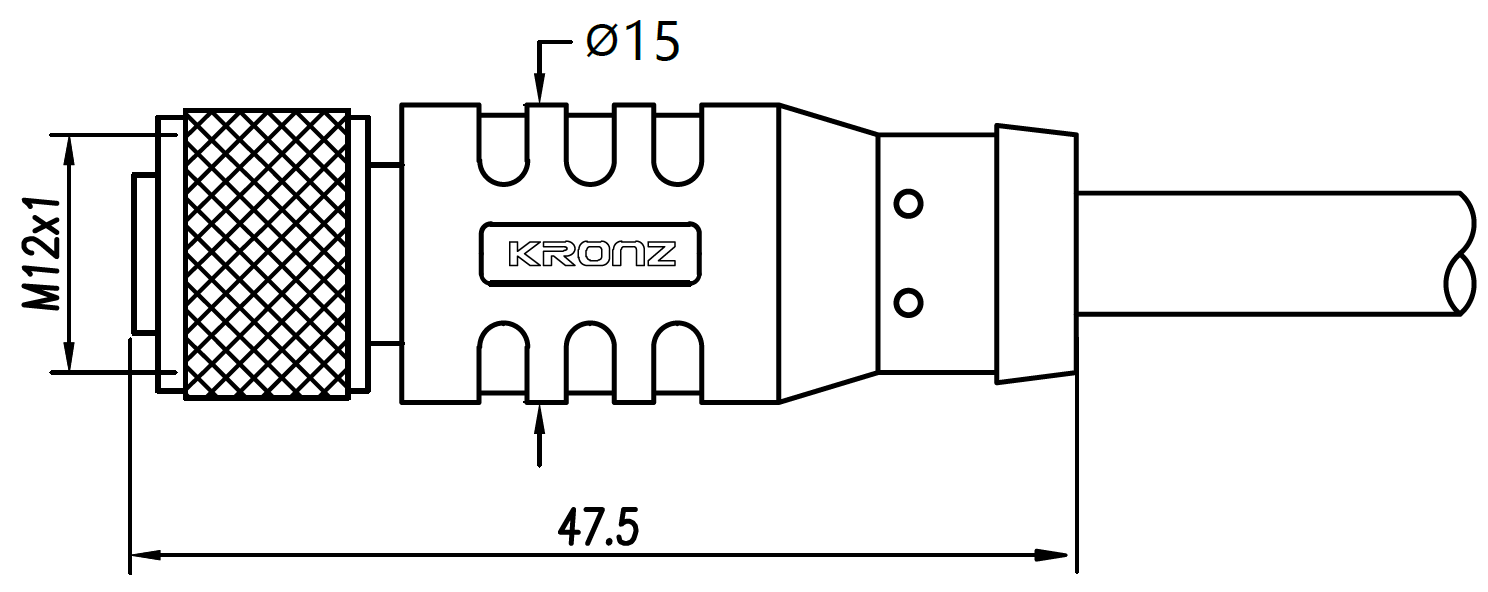

Unit: mm
Pin Assignment
Wire Color
1=BN
2=WH
3=BU
4=BK
