请注意，本PDF文档中所示数据均生成自在线目录，仅供参考。想获取具体详尽的产品规格参数请联系我们的销售人员！
M1204DF-2/E10K
Cordsets
- Form：M12 Pre-assembled IE Connecting Cable
- Type：Female, Straight
- Coding：D-Code
- Transmission Rate: CAT5E
- Pins：4pin
- Length：2M
- Cable：PVC, Green, Shielded
- Technical Features
- Dimensions
- Connections
- Additional Features
| Rated Current | 4A |
| Voltage | 250V |
| Wire color | 1=Yellow(+tx) 2=White(+rx) 3=Orange(-tx) 4=Blue(-rx) |
| Wire gauge | 4×0.34 (4×22AWG) Green, Shielded, PVC, OD=6.5 |
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | Plastic, PA, black |
| Material of grip body | Plastic, PVC/TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

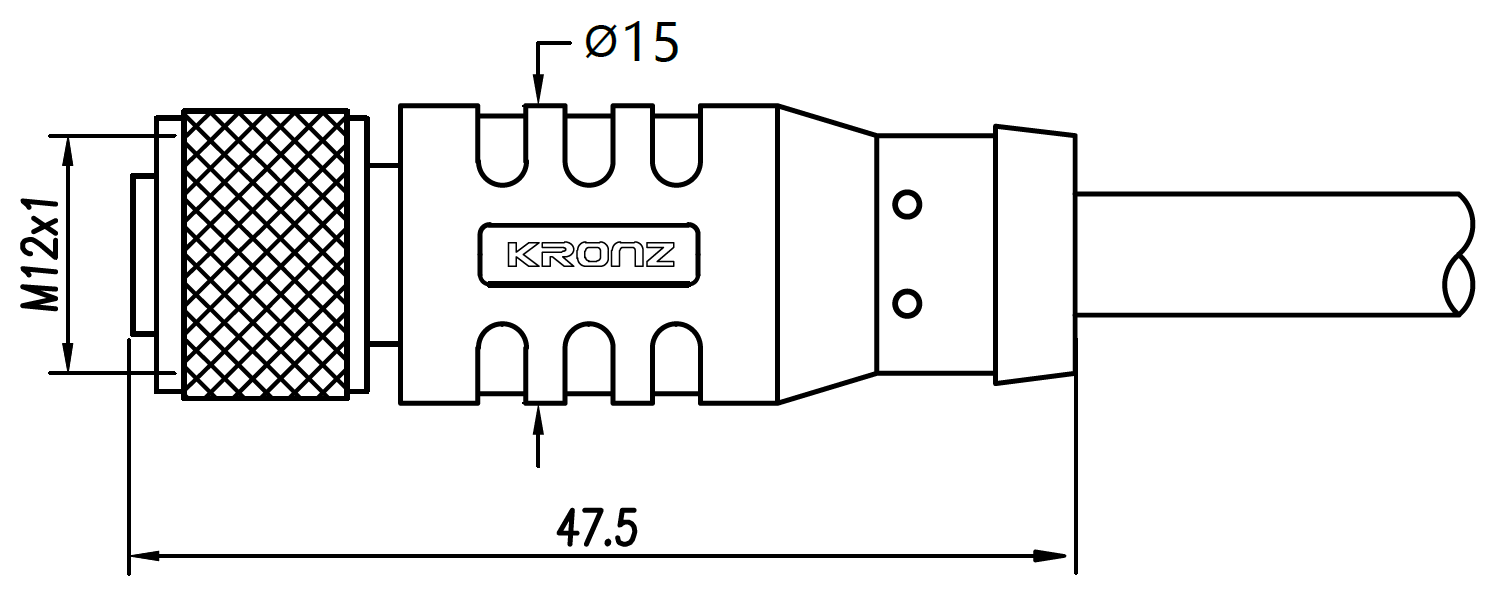

Unit: mm

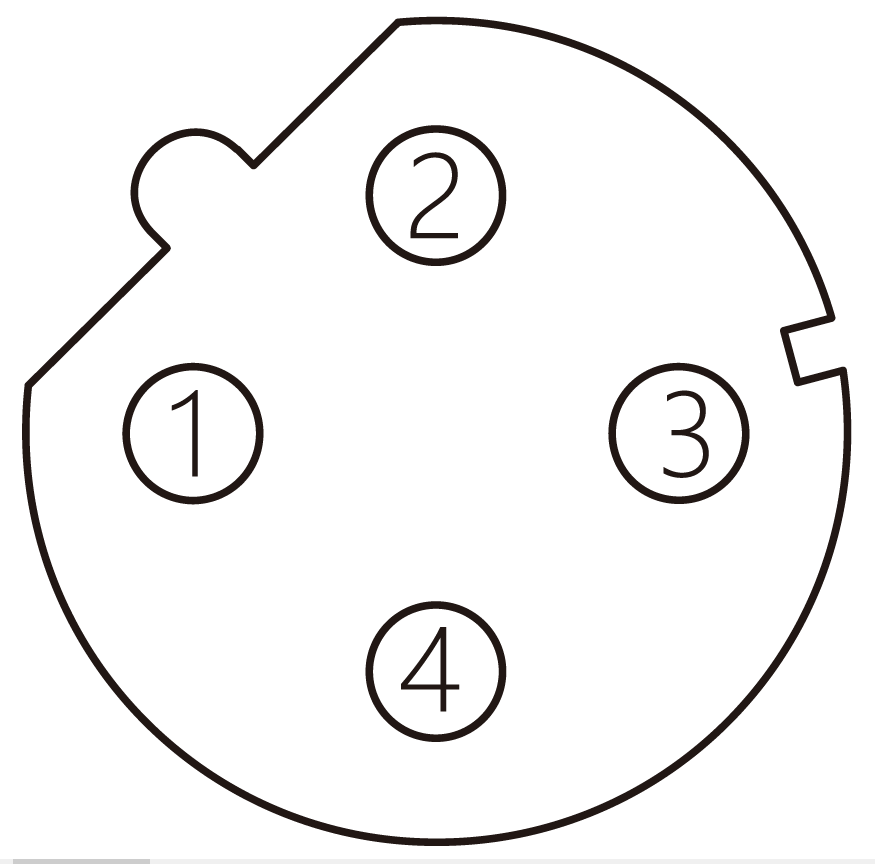

Pin Assignment
Wire Color
1 = Yellow(+tx)
2 = White(+rx)
3 = Orange(-tx)
4 = Blue(-rx)
